Self-Limiting Heating Cable-GBR-50-220-FP

Product basic model description

GBR(M)-50-220-FP: High temperature shielded type, the output power per meter is 50W at 10°C, and the working voltage is 220V.

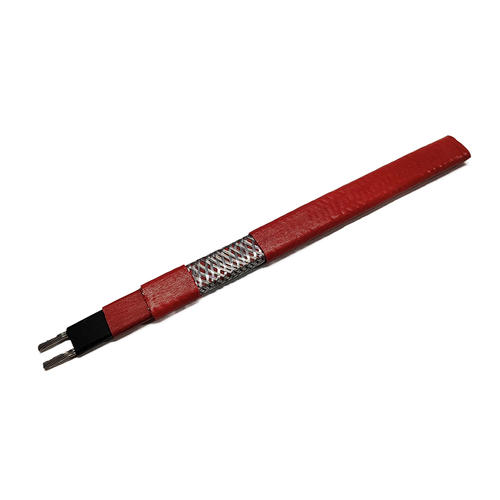

Self-limiting heating cable is an intelligent self-control heating cable, a heating system with self-regulating temperature function. It is made of a conductive polymer material with two conductive wires wrapped inside, with an insulation layer and a protective jacket. The special feature of this cable is that its heating power is automatically reduced as the temperature rises, thus achieving self-limitation and safety protection.

When the self-limiting heating cable is activated by electricity, the electrical resistance inside the conductive polymer material increases with temperature. Once the temperature reaches the preset value, the flow of current in the cable will be reduced to a non-heating state, thus avoiding the risk of overheating and overloading. When the temperature drops, the heating power of the cable is also reactivated, restarting the heating process as needed, keeping the temperature constant.

This self-controlled heating system has a variety of applications including duct heating, floor heating, anti-icing insulation and more. In pipe heating applications, self-limiting heating cables prevent pipes from freezing and maintain fluidity of the medium. In floor heating applications, it can provide a comfortable indoor environment and save energy. In anti-icing insulation applications, it prevents ice and snow damage to buildings and equipment, keeping them safe and functioning properly.

The advantage of the self-limiting heating cable lies in its intelligent self-control function, which can automatically adjust the heating power according to the demand, avoid overheating and overload, save energy and prolong the service life. In addition, it also has the characteristics of corrosion resistance, good insulation performance, high flexibility, etc., and is easy to install and suitable for various environments.

Self-limiting heating cable is an innovative self-control heating system that can intelligently control heating power according to temperature changes. It plays an important role in applications such as duct heating, floor heating, and anti-icing insulation, providing comfortable, safe and energy-efficient heating solutions.
