Due to the relationship between the temperature and the resistance value of PT100 thermal resistance, people use this characteristic to invent and produce PT100 thermal resistance temperature sensor. It is an intelligent sensor integrating temperature and humidity collection. The temperature collection range can be from -200°C to +850°C, and the humidity collection range is from 0% to 100%.

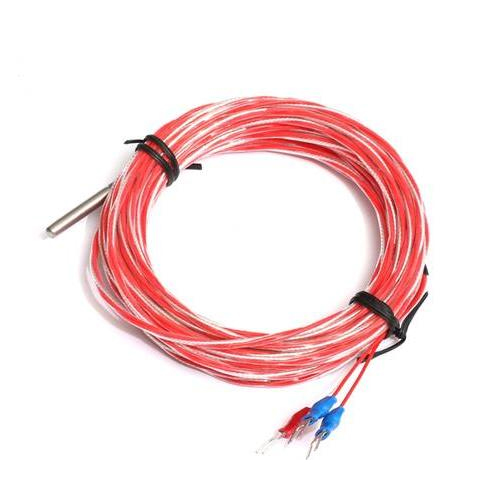

PT100 sensor
Due to the relationship between the temperature and the resistance value of PT100 thermal resistance, people use this characteristic to invent and produce PT100 thermal resistance temperature sensor. It is an intelligent sensor integrating temperature and humidity collection. The temperature collection range can be from -200°C to +850°C, and the humidity collection range is from 0% to 100%.
Index table
50 degrees — 80.31 ohms
-40 degrees — 84.27 ohms
-30 degrees — 88.22 ohms
-20 degrees —92.16 ohms
-10 degrees — 96.09 ohms
0 degrees —–100.00 ohms
10 degrees —- 103.90 ohms
20 degrees —- 107.79 ohms
30 degrees —-111.67 ohms
40 degrees —- 115.54 ohms
50 degrees —-119.40 ohms
60 degrees —-123.24 ohms
70 degrees —- 127.08 ohms
80 degrees —- 130.90 ohms
90 degrees —- 134.71 ohms
100 degrees —138.51 ohms
110 degrees — 142.29 ohms
120 degrees — 146.07 ohms
130 degrees —149.83 ohms
140 degrees — 153.58 ohms
150 degrees — 157.33 ohms
160 degrees — 161.05 ohms
170 degrees —164.77 ohms
180 degrees — 168.48 ohms
190 degrees —172.17 ohms
200 degrees — 175.86 ohms
Applications:
Medical, electrical, industrial, temperature calculation, resistance calculation and other high-precision temperature equipment have a wide range of applications.
